Take The Essentials

VENTUS brings a fundamentally solid experience to users looking for a performance graphics card. A sharp-looking updated design with TORX FAN 4.0 and Airflow Control lets VENTUS breeze through any task.


Revolutionary Triple-Fan Thermal

Three fans on a huge heatsink ensures a cool and quiet experience.


Further With AI, Faster on RTX

Get next-level AI performance on GeForce RTX.

Discover the RTX AI advantage. Built for the era of AI, GeForce RTX™ and NVIDIA RTX™ GPUs feature specialized AI Tensor Cores that deliver cutting-edge performance and next-gen capabilities. From enhanced creativity and ultra-efficient productivity to blisteringly fast gaming, the ultimate in AI power on Windows PCs is on RTX.


WITH DLSS 3

Supercharge your PC with the NVIDIA® GeForce RTX™ 4080 SUPER. Bring your games and creative projects to life with accelerated ray tracing and AI-powered graphics. It’s powered by the ultra-efficient NVIDIA Ada Lovelace architecture and 16GB of super-fast G6X memory.


Boost Clock / Memory Speed

  • • 2580 MHz / 23 Gbps
  • • 16GB GDDR6X

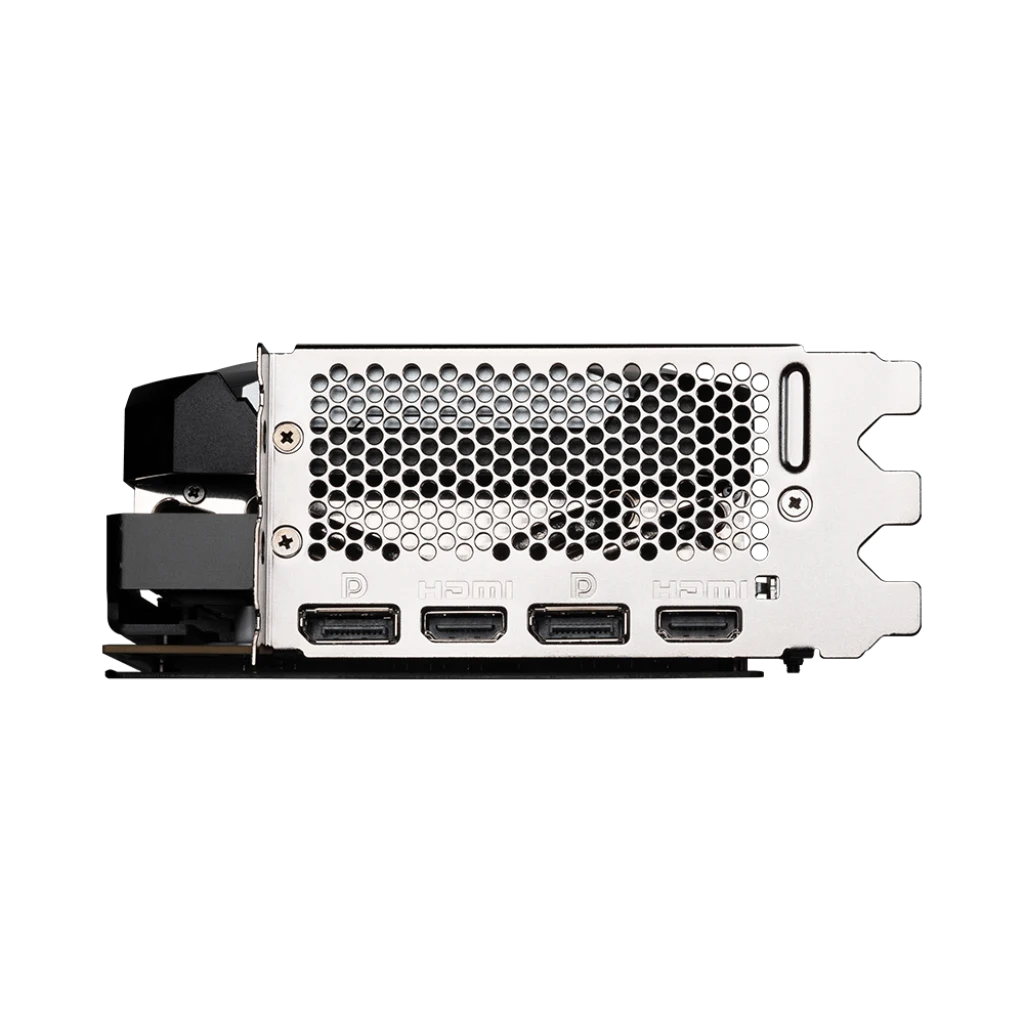

  • • DisplayPort x 2 (v1.4a)
  • • HDMI™ x 2 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)

Triple Fan Thermal Design

  • • TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
  • • Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
  • • Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
  • • Zero Frozr: The fans completely stop when temperatures are relatively low, eliminating all noise.

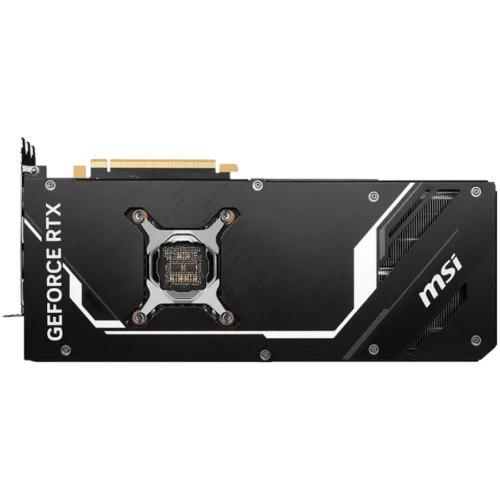

Metal Backplate

  • • A sturdy brushed aluminum backplate features a flow-through design that provides additional ventilation.

MSI Center

  • • The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.

Corepipe



Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.

Copper baseplate



Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.

Airflow control



Stay stealthy with Airflow Control which improves airflow dynamics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling.

TORX FAN 4.0



TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the Triple-Fan cooling system.

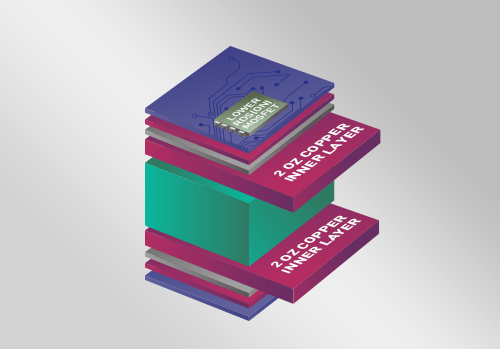

2 Oz Copper



A thickened copper layer inside the PCB increases conductivity which improves heat dissipation and reliability.

DrMos



DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.

Sheet-Metal Anti-Bending



A sheet-metal anti-bending plate reinforces the whole card while thermal pads allow cooling to reach critical component underneath.

Fuse



Additional fuses built into the custom PCB provide additional safeguards against electrical damage.

Double Ball Bearing



The fan core spins TORX FAN for years of intense and lengthy gaming sessions.

Effective Thermal Padding



An abundance of clay-based thermal pads provide additional heat dissipation for board components.

Metal Backplate



A sturdy brushed aluminum backplate features a flow-through design that provides additional ventilation.

Support Bracket



A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.

Video output
Bus Type
PCI Express 4.0 x16
Graphics Engine
Nvidia GeForce RTX 4080 Super
GPU – Core Name
AD103-300
GPU core speed
2550 MHz
GPU Core Speed Boost
2565 MHz
Number of GPUs
1
CUDA Cores
10240
Texture Mapping Unit Quantity
320
Render Output Units Quantity (ROP)
112
Tensor Core Quantity
320
Ray-tracing Cores Quantity
80
Max Resolution
7680×4320
Max. Monitors Supported
4
API Supported
DirectX 12.0
OpenGL 4.6
Vulkan 1.3
Features
HDCP(High-Bandwidth Digital Content Protection)
Nvidia G-Sync
Nvidia DLSS
NVIDIA Game Ready
NVIDIA Studio
NVIDIA Reflex
NVIDIA Broadcast
NVIDIA Ada Lovelace
NVIDIA Encoder
4th Gen Tensor Cores
3rd Gen Ray Tracing Cores
Memory
Memory Size
16 GB
Memory Technology
GDDR6X SDRAM
Memory Speed
23 GB/sec
Bus Width
256 bit
Memory channel width
736 GB/s
Supported interfaces
Interfaces Details
DisplayPort x 2 (v1.4a)
HDMI™ x 2 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable RefreshRate as specified in HDMI™ 2.1a)
System requirements
External Power
16 pin
Required Power Supply
750 W
Other features
Cooling system – type
TORX 4.0 Fan
Included accessories
Documentation
Power
Energy consumed during operation
320 W
Dimensions
Width
62 mm
Depth
322 mm
Height
136 mm
Weight (card / package)
1543 g / 2147 g
Manufacturer Warranty
Guarantee of manufacturer
36 months
