Take The Essentials

VENTUS brings a fundamentally solid experience to users looking for a performance graphics card. A sharp-looking updated design with TORX FAN 4.0 and Airflow Control lets VENTUS breeze through any task.


Revolutionary Dual-Fan Thermal

Two fans on a huge heatsink ensures a cool and quiet experience.


WITH DLSS 3

Get equipped for supercharged gaming and creating with NVIDIA® GeForce RTX™ 4070 Ti SUPER. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience super fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.

- SFF-Ready Enthusiast GeForce Card

Copper baseplate



Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.

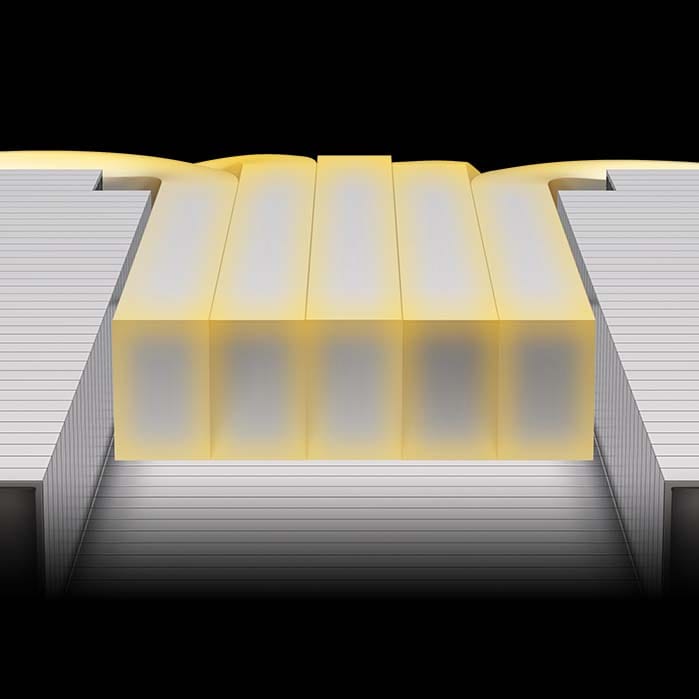

Core Pipe



Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.

Airflow control



Stay stealthy with Airflow Control which improves airflow dynamics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling.

TORX FAN 4.0



TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the Dual-Fan cooling system.

Reinforcing Backplate



The reinforcing backplate features a flow-through design that provides additional ventilation.

Effective Thermal Padding



An abundance of clay-based thermal pads provide additional heat dissipation for board components.

DrMos



DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.

Fuse



Additional fuses built into the custom PCB provide additional safeguards against electrical damage.

Build Small. Play Big.



You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.

Video output
Bus Type
PCI Express 4.0 x16
Graphics Engine
Nvidia GeForce RTX 4070 Ti Super
GPU – Core Name
AD103-275
GPU core speed Boost
2640 MHz (GAMING & SILENT Mode)
GPU Core Speed Extreme Performance
2655 MHz (MSI Center)
Number of GPUs
1
CUDA Cores
8448
Texture Mapping Unit Quantity
264
Render Output Units Quantity (ROP)
112
Tensor Core Quantity
264
Ray-tracing Cores Quantity
66
Max Resolution
7680×4320
Max. Monitors Supported
4
API Supported
DirectX 12.0
OpenGL 4.6
Features
HDCP(High-Bandwidth Digital Content Protection)
Nvidia G-Sync
Nvidia DLSS
NVIDIA Game Ready
NVIDIA Studio
NVIDIA Reflex
NVIDIA Broadcast
NVIDIA Ada Lovelace
NVIDIA Encoder
4th Gen Tensor Cores
3rd Gen Ray Tracing Cores
Memory
Memory Size
16 GB
Memory Technology
GDDR6X SDRAM
Memory Speed
21 GB/sec
Bus Width
256 bit
Memory channel width
672 GB/s
Supported interfaces
Interfaces Details
DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
System requirements
External Power
16 pin
Recommended Power Supply
700 W
Other features
Cooling system – type
TORX 4.0 Fan
Included accessories
User manual
Power
Energy consumed during operation
285 W
Dimensions
Width
51 mm
Depth
242 mm
Height
125 mm
Weight (card / package)
882 g / 1214 g
Manufacturer Warranty
Guarantee of manufacturer
36 months
